Diagrid Catalyst & .NET Aspire

dotnet new aspire-starter --output Aspire-Dapr-Catalyst

aspire run

# Install via Homebrew
brew install dapr/tap/dapr-cli

# Verify the installation
dapr -h

# self-hosted mode
dapr init

# Verify Dapr Version
dapr -v

CLI version: 1.16.5
Runtime version: 1.17.2

docker ps --filter "name=dapr" --format "table {{.Names}}\t{{.Image}}\t{{.Status}}\t{{.Ports}}"

NAMES            IMAGE                STATUS                PORTS
dapr_zipkin      openzipkin/zipkin    Up 3 days (healthy)   0.0.0.0:9411->9411/tcp, [::]:9411->9411/tcp
dapr_placement   daprio/dapr:1.17.2   Up 3 days             0.0.0.0:50005->50005/tcp, [::]:50005->50005/tcp, 0.0.0.0:58080->8080/tcp, [::]:58080->8080/tcp, 0.0.0.0:59090->9090/tcp, [::]:59090->9090/tcp
dapr_scheduler   daprio/dapr:1.17.2   Up 3 days             0.0.0.0:2379->2379/tcp, [::]:2379->2379/tcp, 0.0.0.0:50006->50006/tcp, [::]:50006->50006/tcp, 0.0.0.0:58081->8080/tcp, [::]:58081->8080/tcp, 0.0.0.0:59091->9090/tcp, [::]:59091->9090/tcp
dapr_redis       redis:6              Up 3 days             0.0.0.0:6379->6379/tcp, [::]:6379->6379/tcp

dotnet add package CommunityToolKit.Aspire.Hosting.Dapr

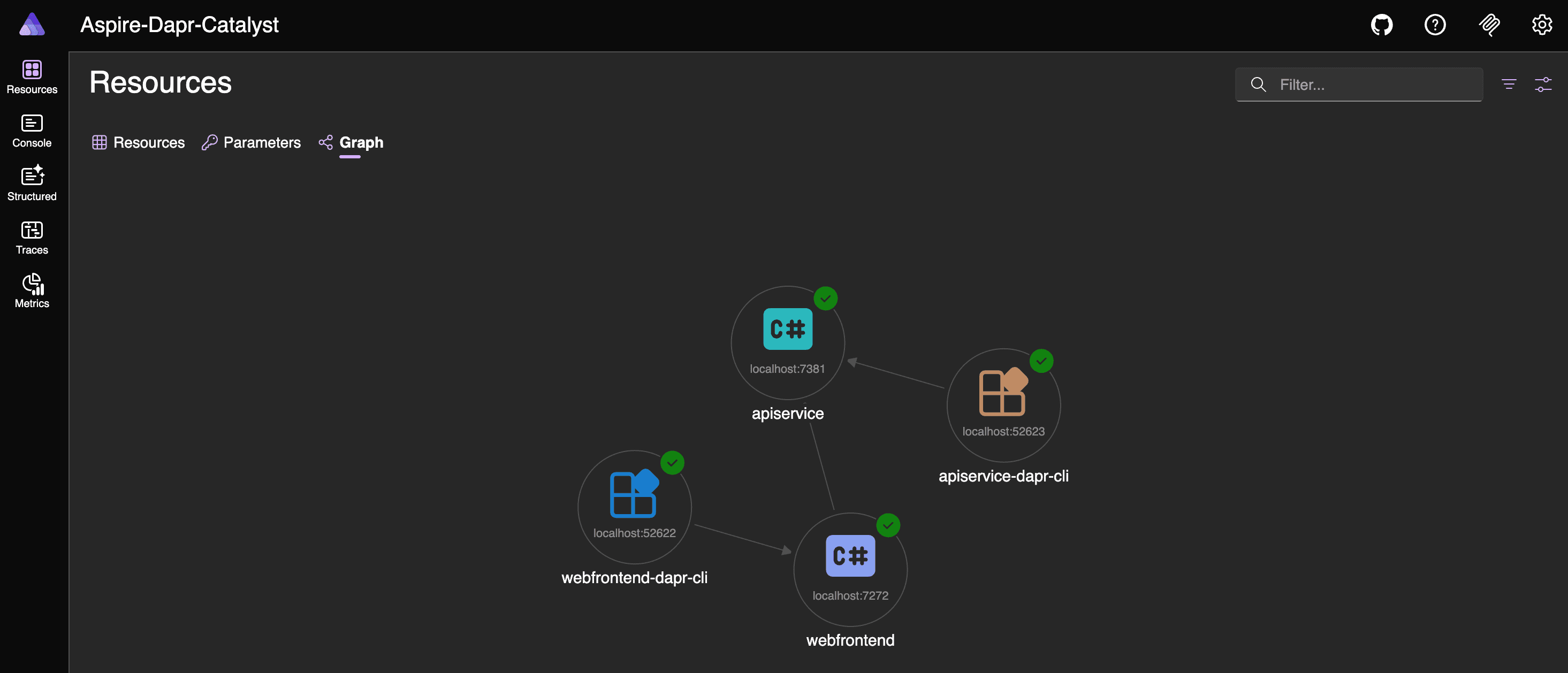

// Program.cs
var builder = DistributedApplication.CreateBuilder(args);

var apiService = builder.AddProject<Projects.Aspire_Dapr_Catalyst_ApiService>("apiservice")
    .WithHttpHealthCheck("/health")
    .WithDaprSidecar();

builder.AddProject<Projects.Aspire_Dapr_Catalyst_Web>("webfrontend")
    .WithExternalHttpEndpoints()
    .WithHttpHealthCheck("/health")
    .WaitFor(apiService)
    .WithDaprSidecar();

builder.Build().Run();

// Program.cs
using Aspire_Dapr_Catalyst.Web;
using Aspire_Dapr_Catalyst.Web.Components;

var builder = WebApplication.CreateBuilder(args);

// Add service defaults & Aspire client integrations.
builder.AddServiceDefaults();

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();

builder.Services.AddOutputCache();

builder.Services.AddHttpClient<WeatherApiClient>(client =>
{
    var daprPort = builder.Configuration["DAPR_HTTP_PORT"];

    if (string.IsNullOrWhiteSpace(daprPort))
    {
        throw new InvalidOperationException(
            "DAPR_HTTP_PORT is not configured. Start the web app with a Dapr sidecar.");
    }

    client.BaseAddress = new Uri($"http://127.0.0.1:{daprPort}/v1.0/invoke/apiservice/method/");
});

var app = builder.Build();

if (!app.Environment.IsDevelopment())
{
    app.UseExceptionHandler("/Error", createScopeForErrors: true);
    // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
    app.UseHsts();
}

app.UseHttpsRedirection();

app.UseAntiforgery();

app.UseOutputCache();

app.MapStaticAssets();

app.MapRazorComponents<App>()
    .AddInteractiveServerRenderMode();

app.MapDefaultEndpoints();

app.Run();

aspire run

curl -o- https://downloads.diagrid.io/cli/install.sh | bash

diagrid -h

██████╗ ██╗ █████╗  ██████╗ ██████╗ ██╗██████╗
██╔══██╗██║██╔══██╗██╔════╝ ██╔══██╗██║██╔══██╗
██║  ██║██║███████║██║  ███╗██████╔╝██║██║  ██║
██║  ██║██║██╔══██║██║   ██║██╔══██╗██║██║  ██║
██████╔╝██║██║  ██║╚██████╔╝██║  ██║██║██████╔╝
╚═════╝ ╚═╝╚═╝  ╚═╝ ╚═════╝ ╚═╝  ╚═╝╚═╝╚═════╝
────────────────────────────────────────────────
Diagrid Cloud CLI [version: 1.21.0]

Current product is "catalyst" on "free" plan.
To switch to "conductor", run:
	> diagrid product use conductor

Usage:
  diagrid [command]

Region Commands:
  region         Manage regions

Project Commands:
  apply          Apply declarative configuration
  project        Manage projects
  agent          Manage AI Agents
  appid          Manage App IDs
  component      Manage components
  configuration  Manage Dapr configurations
  export         Export resources to Dapr manifests
  httpendpoint   Manage Dapr HTTP endpoints
  resiliency     Manage resiliencies
  subscription   Manage pub/sub topic subscriptions
  workflow       Explore workflow executions

Managed Services Commands:
  kv             Manage Diagrid KV (Key-Value) Stores
  pubsub         Manage Diagrid Pub/Sub Services

Local Development Commands:
  call           Call commands to invoke the Catalyst APIs directly
  dev            Run and connect code to the Catalyst APIs for development
  listen         Establish a local app connection from an App ID to your terminal to stream incoming requests

Operations & Diagnostics Commands:
  diagnose       Capture detailed Catalyst diagnostic information from your Kubernetes cluster

Administration Commands:
  serviceaccount Manage service accounts
  apikey         Manage API Keys
  auth           Show context information about the current logged in user
  completion     Generate autocompletion scripts for [bash, zsh, fish, powershell | psh]
  login          Log into Diagrid Cloud
  logout         Log out of Diagrid Cloud
  org            Manage the user's organizations
  product        Switch the current user's product [catalyst, conductor]
  update         Update the Diagrid CLI to the latest version
  user           Manage the users within an organization
  version        Get the CLI version
  web            Load the web console
  whoami         Show context information about the current logged in user
  help           Help about any command

Flags:
  -h, --help   help for diagrid

Use "diagrid [command] --help" for more information about a command.

diagrid login

diagrid whoami

dotnet add package Diagrid.Aspire.Hosting.Catalyst --version 0.0.5

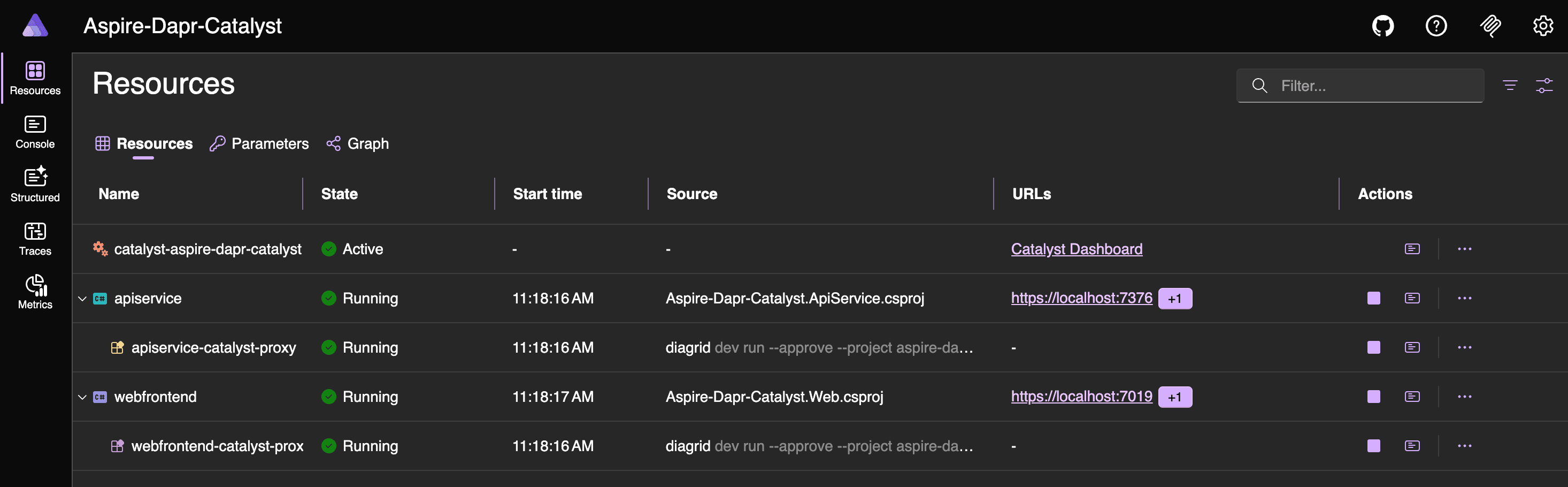

// AppHost.cs
using Aspire_Dapr_Catalyst.ServiceDefaults;

var builder = DistributedApplication.CreateBuilder(args);
var appHostSettings = AppHostSettings.Create(builder);

var apiService = builder.AddProject<Projects.Aspire_Dapr_Catalyst_ApiService>(AppResourceNames.ApiService)
    .WithHttpHealthCheck("/health");

var webFrontend = builder.AddProject<Projects.Aspire_Dapr_Catalyst_Web>(AppResourceNames.WebFrontend)
    .WithExternalHttpEndpoints()
    .WithHttpHealthCheck("/health")
    .WithReference(apiService)
    .WaitFor(apiService);

// AppHost mode map:
// 1. aspire run
// 2. DAPR_EXECUTION_MODE=catalyst aspire run
// 3. aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output
// 4. DAPR_EXECUTION_MODE=catalyst aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output

LocalAppHostConfigurator.ConfigureServiceExecution(builder, appHostSettings, apiService, webFrontend);
LocalAppHostConfigurator.ConfigureLocalOtelServiceNames(appHostSettings, apiService, webFrontend);

KubernetesPublishingConfigurator.Configure(builder, appHostSettings, apiService, webFrontend);

builder.Build().Run();

// LocalAppHostConfigurator.cs
using Aspire_Dapr_Catalyst.ServiceDefaults;
using CommunityToolkit.Aspire.Hosting.Dapr;
using Diagrid.Aspire.Hosting.Catalyst;

internal static class LocalAppHostConfigurator
{

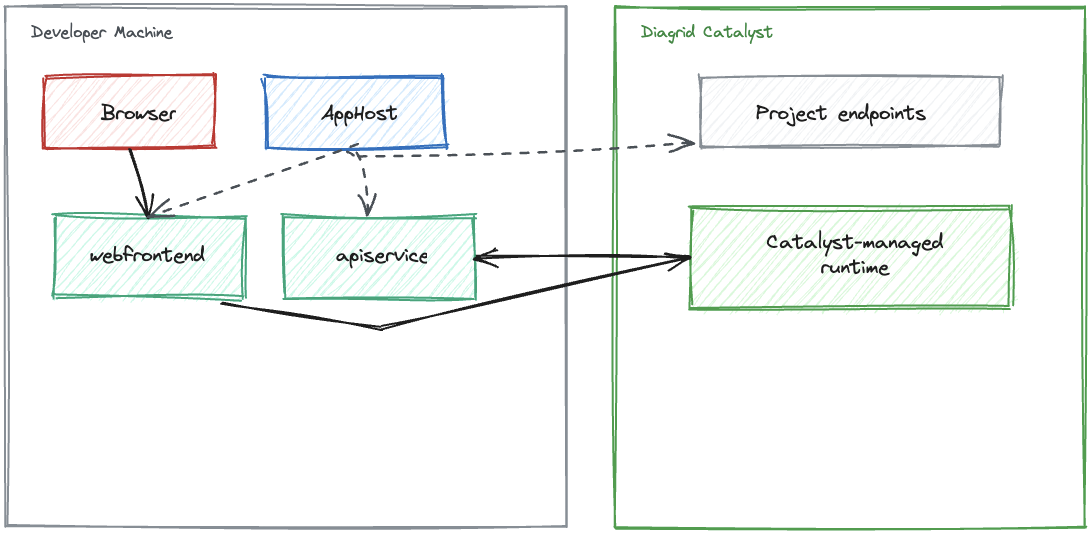

    // Applies only to the two local run modes:
    // 1. local Dapr sidecars
    // 2. local Catalyst-managed Dapr
    public static void ConfigureServiceExecution(
        IDistributedApplicationBuilder builder,
        AppHostSettings appHostSettings,
        IResourceBuilder<ProjectResource> apiService,
        IResourceBuilder<ProjectResource> webFrontend)
    {
        if (appHostSettings.IsPublishMode)
        {
            return;
        }

        if (appHostSettings.UseCatalyst)
        {
            builder.AddCatalystProject(appHostSettings.CatalystProjectName);

            apiService
                .WithCatalyst()
                .WithEnvironment(AppEnvironmentVariables.DaprExecutionMode, ExecutionModes.Catalyst);

            webFrontend
                .WithCatalyst()
                .WithEnvironment(AppEnvironmentVariables.DaprExecutionMode, ExecutionModes.Catalyst);

            return;
        }

        apiService.WithDaprSidecar(CreateDaprSidecarOptions(AppResourceNames.ApiService));
        webFrontend.WithDaprSidecar(CreateDaprSidecarOptions(AppResourceNames.WebFrontend));
    }

    // Applies only to the two local run modes.
    // It does not turn tracing on; it only keeps local OTEL service names aligned with publish mode.
    public static void ConfigureLocalOtelServiceNames(
        AppHostSettings appHostSettings,
        IResourceBuilder<ProjectResource> apiService,
        IResourceBuilder<ProjectResource> webFrontend)
    {
        if (appHostSettings.IsPublishMode)
        {
            return;
        }

        apiService
            .WithEnvironment(
                AppEnvironmentVariables.OtelServiceName,
                AppTelemetryConventions.GetServiceName(AppResourceNames.ApiService));

        webFrontend
            .WithEnvironment(
                AppEnvironmentVariables.OtelServiceName,
                AppTelemetryConventions.GetServiceName(AppResourceNames.WebFrontend));
    }

    // Applies only to mode 1, where AppHost starts local Dapr sidecars.
    private static DaprSidecarOptions CreateDaprSidecarOptions(string appId) => new()
    {
        AppId = appId
    };
}

// AppHostSettings.cs
using Aspire_Dapr_Catalyst.ServiceDefaults;

// Shared across all four AppHost modes. Member comments call out narrower scope where useful.
internal sealed class AppHostSettings
{
    private const string DefaultCatalystProjectName = "aspire-dapr-catalyst";

    // True only for modes 3 and 4.
    public bool IsPublishMode { get; private init; }

    // True only for modes 2 and 4.
    public bool UseCatalyst { get; private init; }

    // Used only when Catalyst mode is active in mode 2 or 4.
    public string CatalystProjectName { get; private init; } = DefaultCatalystProjectName;

    public static AppHostSettings Create(IDistributedApplicationBuilder builder)
    {
        var executionMode = builder.Configuration[AppEnvironmentVariables.DaprExecutionMode];
        var catalystProjectName = builder.Configuration[AppEnvironmentVariables.CatalystProjectName];
        var isPublishMode = builder.ExecutionContext.IsPublishMode;

        return new AppHostSettings
        {
            IsPublishMode = isPublishMode,
            UseCatalyst = string.Equals(executionMode, ExecutionModes.Catalyst, StringComparison.OrdinalIgnoreCase),
            CatalystProjectName = string.IsNullOrWhiteSpace(catalystProjectName)
                ? DefaultCatalystProjectName
                : catalystProjectName.Trim()
        };
    }
}

// AppHostComputeEnvironmentNames.cs
internal static class AppHostComputeEnvironmentNames
{
    // Used only by modes 3 and 4.
    public const string Kubernetes = "k8s";
}

// AppTelemetryConventions.cs
internal static class AppTelemetryConventions
{
    // Shared naming convention for local runs and published workloads.
    public static string GetServiceName(string appId) => $"{appId}-app";
}

// AppModel.cs
namespace Aspire_Dapr_Catalyst.ServiceDefaults;

// Shared identifiers used across the AppHost and app projects.
public static class AppResourceNames
{
    public const string ApiService = "apiservice";
    public const string WebFrontend = "webfrontend";
}

// Shared configuration keys injected or consumed across the solution.
public static class AppEnvironmentVariables
{
    public const string DaprExecutionMode = "DAPR_EXECUTION_MODE";
    public const string DaprHttpEndpoint = "DAPR_HTTP_ENDPOINT";
    public const string DaprGrpcEndpoint = "DAPR_GRPC_ENDPOINT";
    public const string DaprApiToken = "DAPR_API_TOKEN";
    public const string CatalystProjectName = "CATALYST_PROJECT_NAME";
    public const string DataProtectionKeysPath = "DATA_PROTECTION_KEYS_PATH";
    public const string OtelExporterOtlpEndpoint = "OTEL_EXPORTER_OTLP_ENDPOINT";
    public const string OtelExporterOtlpProtocol = "OTEL_EXPORTER_OTLP_PROTOCOL";
    public const string OtelServiceName = "OTEL_SERVICE_NAME";
}

public static class ExecutionModes
{
    public const string Catalyst = "catalyst";
}

// Extensions.cs
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Diagnostics.HealthChecks;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Diagnostics.HealthChecks;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.ServiceDiscovery;
using OpenTelemetry;
using OpenTelemetry.Exporter;
using OpenTelemetry.Logs;
using OpenTelemetry.Metrics;
using OpenTelemetry.Trace;

namespace Microsoft.Extensions.Hosting;

// Adds common Aspire services: service discovery, resilience, health checks, and OpenTelemetry.
// This project should be referenced by each service project in your solution.
// To learn more about using this project, see https://aka.ms/dotnet/aspire/service-defaults
public static class Extensions
{
    private const string HealthEndpointPath = "/health";
    private const string AlivenessEndpointPath = "/alive";

    public static TBuilder AddServiceDefaults<TBuilder>(this TBuilder builder) where TBuilder : IHostApplicationBuilder
    {
        builder.ConfigureOpenTelemetry();

        builder.AddDefaultHealthChecks();

        builder.Services.AddServiceDiscovery();

        builder.Services.ConfigureHttpClientDefaults(http =>
        {
            // Turn on resilience by default
            http.AddStandardResilienceHandler();

            // Turn on service discovery by default
            http.AddServiceDiscovery();
        });

        // Uncomment the following to restrict the allowed schemes for service discovery.
        // builder.Services.Configure<ServiceDiscoveryOptions>(options =>
        // {
        //     options.AllowedSchemes = ["https"];
        // });

        return builder;
    }

    public static TBuilder ConfigureOpenTelemetry<TBuilder>(this TBuilder builder) where TBuilder : IHostApplicationBuilder
    {
        var useOtlpExporter = !string.IsNullOrWhiteSpace(
            builder.Configuration[Aspire_Dapr_Catalyst.ServiceDefaults.AppEnvironmentVariables.OtelExporterOtlpEndpoint]);

        builder.Logging.AddOpenTelemetry(logging =>
        {
            logging.IncludeFormattedMessage = true;
            logging.IncludeScopes = true;

            if (useOtlpExporter)
            {
                logging.AddOtlpExporter();
            }
        });

        builder.Services.AddOpenTelemetry()
            .WithMetrics(metrics =>
            {
                metrics.AddAspNetCoreInstrumentation()
                    .AddHttpClientInstrumentation()
                    .AddRuntimeInstrumentation();
            })
            .WithTracing(tracing =>
            {
                tracing.AddSource(builder.Environment.ApplicationName)
                    .AddAspNetCoreInstrumentation(tracing =>
                        // Exclude health check requests from tracing
                        tracing.Filter = context =>
                            !context.Request.Path.StartsWithSegments(HealthEndpointPath)
                            && !context.Request.Path.StartsWithSegments(AlivenessEndpointPath)
                    )
                    // Uncomment the following line to enable gRPC instrumentation (requires the OpenTelemetry.Instrumentation.GrpcNetClient package)
                    //.AddGrpcClientInstrumentation()
                    .AddHttpClientInstrumentation();
            });

        builder.AddOpenTelemetryExporters();

        return builder;
    }

    private static TBuilder AddOpenTelemetryExporters<TBuilder>(this TBuilder builder) where TBuilder : IHostApplicationBuilder
    {
        var useOtlpExporter = !string.IsNullOrWhiteSpace(
            builder.Configuration[Aspire_Dapr_Catalyst.ServiceDefaults.AppEnvironmentVariables.OtelExporterOtlpEndpoint]);

        if (useOtlpExporter)
        {
            builder.Services.AddOpenTelemetry()
                .WithMetrics(metrics => metrics.AddOtlpExporter())
                .WithTracing(tracing => tracing.AddOtlpExporter());
        }

        // Uncomment the following lines to enable the Azure Monitor exporter (requires the Azure.Monitor.OpenTelemetry.AspNetCore package)
        //if (!string.IsNullOrEmpty(builder.Configuration["APPLICATIONINSIGHTS_CONNECTION_STRING"]))
        //{
        //    builder.Services.AddOpenTelemetry()
        //       .UseAzureMonitor();
        //}

        return builder;
    }

    public static TBuilder AddDefaultHealthChecks<TBuilder>(this TBuilder builder) where TBuilder : IHostApplicationBuilder
    {
        builder.Services.AddHealthChecks()
            // Add a default liveness check to ensure app is responsive
            .AddCheck("self", () => HealthCheckResult.Healthy(), ["live"]);

        return builder;
    }

    public static WebApplication MapDefaultEndpoints(this WebApplication app)
    {
        // Adding health checks endpoints to applications in non-development environments has security implications.
        // See https://aka.ms/dotnet/aspire/healthchecks for details before enabling these endpoints in non-development environments.
        if (app.Environment.IsDevelopment())
        {
            // All health checks must pass for app to be considered ready to accept traffic after starting
            app.MapHealthChecks(HealthEndpointPath);

            // Only health checks tagged with the "live" tag must pass for app to be considered alive
            app.MapHealthChecks(AlivenessEndpointPath, new HealthCheckOptions
            {
                Predicate = r => r.Tags.Contains("live")
            });
        }

        return app;
    }
}

// Program.cs
using Aspire_Dapr_Catalyst.Web;
using Aspire_Dapr_Catalyst.Web.Components;
using Aspire_Dapr_Catalyst.ServiceDefaults;
using Microsoft.AspNetCore.DataProtection;

var builder = WebApplication.CreateBuilder(args);
var startup = WebAppStartupSettings.Create(builder.Configuration);

// Shared across all four AppHost modes.
builder.AddServiceDefaults();

ConfigureUiServices(builder.Services);
ConfigureDataProtection(builder.Services, startup);
ConfigureWeatherApiClient(builder.Services, startup);

var app = builder.Build();

ConfigureRequestPipeline(app, startup);

app.Run();

static void ConfigureUiServices(IServiceCollection services)
{
    // Shared across all four AppHost modes.
    services.AddRazorComponents()
        .AddInteractiveServerComponents();

    services.AddOutputCache();
}

static void ConfigureDataProtection(IServiceCollection services, WebAppStartupSettings startup)
{
    // In this repo, the generated Kubernetes workloads for modes 3 and 4 mount a shared key directory.
    // Local run modes 1 and 2 leave this unset and use the default in-memory/file-system behavior.
    if (string.IsNullOrWhiteSpace(startup.DataProtectionKeysPath))
    {
        return;
    }

    services.AddDataProtection()
        .SetApplicationName(WebAppStartupSettings.DataProtectionApplicationName)
        .PersistKeysToFileSystem(new DirectoryInfo(startup.DataProtectionKeysPath));
}

static void ConfigureWeatherApiClient(IServiceCollection services, WebAppStartupSettings startup)
{
    startup.Validate();

    var apiServiceRoute = startup.ResolveApiServiceRoute();

    services.AddHttpClient<WeatherApiClient>(client =>
    {
        client.BaseAddress = apiServiceRoute.BaseAddress;

        if (apiServiceRoute.UseDaprAppIdHeader)
        {
            client.DefaultRequestHeaders.Add("dapr-app-id", AppResourceNames.ApiService);
        }

        if (!string.IsNullOrWhiteSpace(apiServiceRoute.DaprApiToken))
        {
            client.DefaultRequestHeaders.Add("dapr-api-token", apiServiceRoute.DaprApiToken);
        }
    });
}

static void ConfigureRequestPipeline(WebApplication app, WebAppStartupSettings startup)
{
    if (!app.Environment.IsDevelopment())
    {
        app.UseExceptionHandler("/Error", createScopeForErrors: true);
        app.UseHsts();
    }

    if (startup.HasHttpsEndpoint)
    {
        app.UseHttpsRedirection();
    }

    app.UseAntiforgery();
    app.UseOutputCache();
    app.MapStaticAssets();

    app.MapRazorComponents<App>()
        .AddInteractiveServerRenderMode();

    app.MapDefaultEndpoints();
}

internal sealed class WebAppStartupSettings
{
    private const string DaprHttpPortEnvironmentVariable = "DAPR_HTTP_PORT";
    private const string ApiServiceHttpEnvironmentVariable = "APISERVICE_HTTP";
    private const string ApiServiceHttpServiceDiscoveryKey = "services__apiservice__http__0";
    private const string HttpsPortsEnvironmentVariable = "HTTPS_PORTS";
    private const string AspNetCoreHttpsPortEnvironmentVariable = "ASPNETCORE_HTTPS_PORT";
    private const string AspNetCoreUrlsEnvironmentVariable = "ASPNETCORE_URLS";

    public const string DataProtectionApplicationName = "Aspire-Dapr-Catalyst.Web";

    // AppHost mode map:

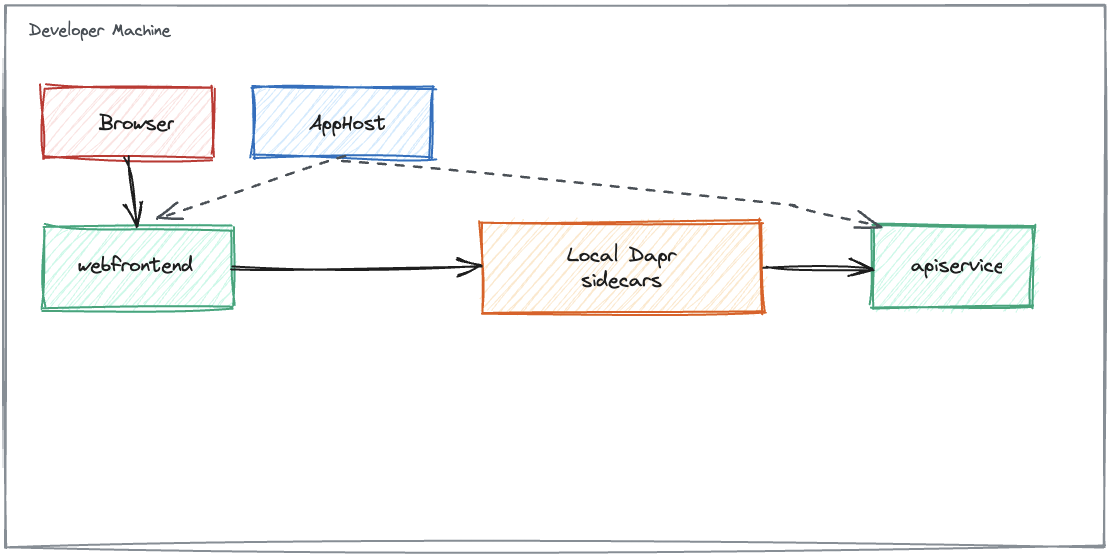

    // 1. aspire run
    // 2. DAPR_EXECUTION_MODE=catalyst aspire run
    // 3. aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output
    // 4. DAPR_EXECUTION_MODE=catalyst aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output

    public string? DataProtectionKeysPath { get; private init; }

    // True only for modes 2 and 4.
    public bool IsCatalystMode { get; private init; }

    // Used in modes 2 and 4.
    public string? DaprHttpEndpoint { get; private init; }

    // Used in modes 1 and 3.
    public string? DaprHttpPort { get; private init; }

    // Required in modes 2 and 4; optional otherwise.
    public string? DaprApiToken { get; private init; }

    // Primarily a non-Dapr fallback when the web app is run outside the four intended AppHost modes.
    public string? ApiServiceHttp { get; private init; }

    // Shared across all four modes; used only to decide whether HTTPS redirection is safe.
    public bool HasHttpsEndpoint { get; private init; }

    public static WebAppStartupSettings Create(IConfiguration configuration)
    {
        var executionMode = Normalize(configuration[AppEnvironmentVariables.DaprExecutionMode]);
        var aspNetCoreUrls = configuration[AspNetCoreUrlsEnvironmentVariable];

        return new WebAppStartupSettings
        {
            DataProtectionKeysPath = Normalize(configuration[AppEnvironmentVariables.DataProtectionKeysPath]),
            IsCatalystMode = string.Equals(executionMode, ExecutionModes.Catalyst, StringComparison.OrdinalIgnoreCase),
            DaprHttpEndpoint = Normalize(configuration[AppEnvironmentVariables.DaprHttpEndpoint]),
            DaprHttpPort = Normalize(configuration[DaprHttpPortEnvironmentVariable]),
            DaprApiToken = Normalize(configuration[AppEnvironmentVariables.DaprApiToken]),
            ApiServiceHttp = Normalize(configuration[ApiServiceHttpEnvironmentVariable])
                ?? Normalize(configuration[ApiServiceHttpServiceDiscoveryKey]),
            HasHttpsEndpoint =
                !string.IsNullOrWhiteSpace(configuration[HttpsPortsEnvironmentVariable]) ||
                !string.IsNullOrWhiteSpace(configuration[AspNetCoreHttpsPortEnvironmentVariable]) ||
                (aspNetCoreUrls?.Contains("https://", StringComparison.OrdinalIgnoreCase) ?? false)
        };
    }

    // Applies only to Catalyst-backed execution in modes 2 and 4.
    // Modes 1 and 3 use DAPR_HTTP_PORT instead, and the direct service-discovery fallback needs neither.
    public void Validate()
    {
        if (IsCatalystMode && string.IsNullOrWhiteSpace(DaprHttpEndpoint))
        {
            throw new InvalidOperationException(
                "Catalyst mode requires DAPR_HTTP_ENDPOINT. Start the AppHost with DAPR_EXECUTION_MODE=catalyst and ensure the Diagrid CLI is installed and logged in.");
        }

        if (IsCatalystMode && string.IsNullOrWhiteSpace(DaprApiToken))
        {
            throw new InvalidOperationException(
                "Catalyst mode requires DAPR_API_TOKEN. Ensure the Catalyst runtime or Kubernetes deployment injects the App ID API token.");
        }
    }

    public ApiServiceRoute ResolveApiServiceRoute()
    {
        if (!string.IsNullOrWhiteSpace(DaprHttpEndpoint))
        {
            return ApiServiceRoute.ForCatalyst(DaprHttpEndpoint, DaprApiToken);
        }

        if (!string.IsNullOrWhiteSpace(DaprHttpPort))
        {
            return ApiServiceRoute.ForSidecar(DaprHttpPort, DaprApiToken);
        }

        return ApiServiceRoute.ForServiceDiscovery(ApiServiceHttp);
    }

    private static string? Normalize(string? value)
    {
        return string.IsNullOrWhiteSpace(value)
            ? null
            : value.Trim();
    }
}

internal sealed record ApiServiceRoute(Uri BaseAddress, bool UseDaprAppIdHeader, string? DaprApiToken)
{

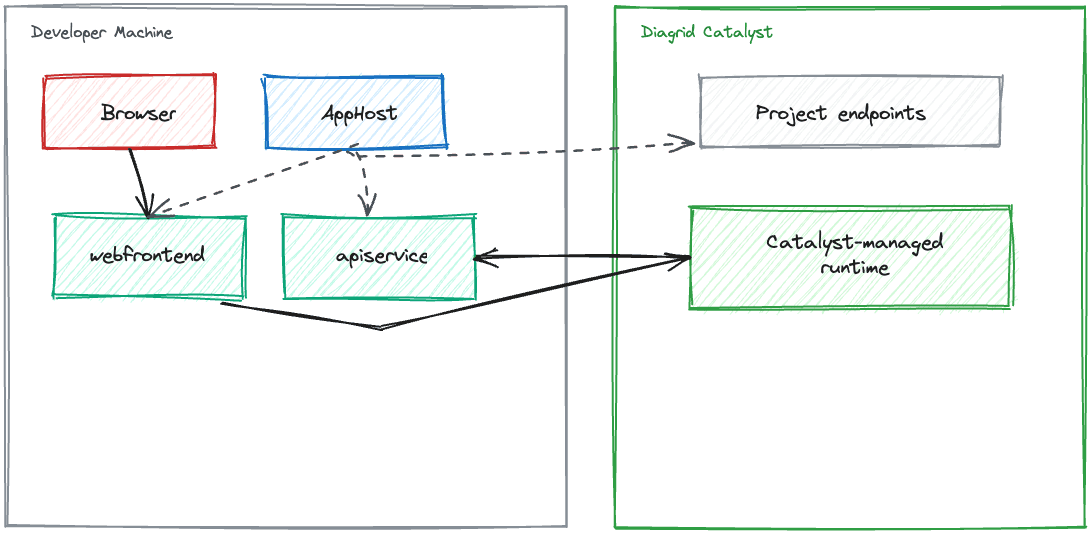

    // Applies to Catalyst-backed execution in modes 2 and 4.
    public static ApiServiceRoute ForCatalyst(string daprHttpEndpoint, string? daprApiToken) => new(
        new Uri(AppendTrailingSlash(daprHttpEndpoint)),
        UseDaprAppIdHeader: true,
        DaprApiToken: daprApiToken);

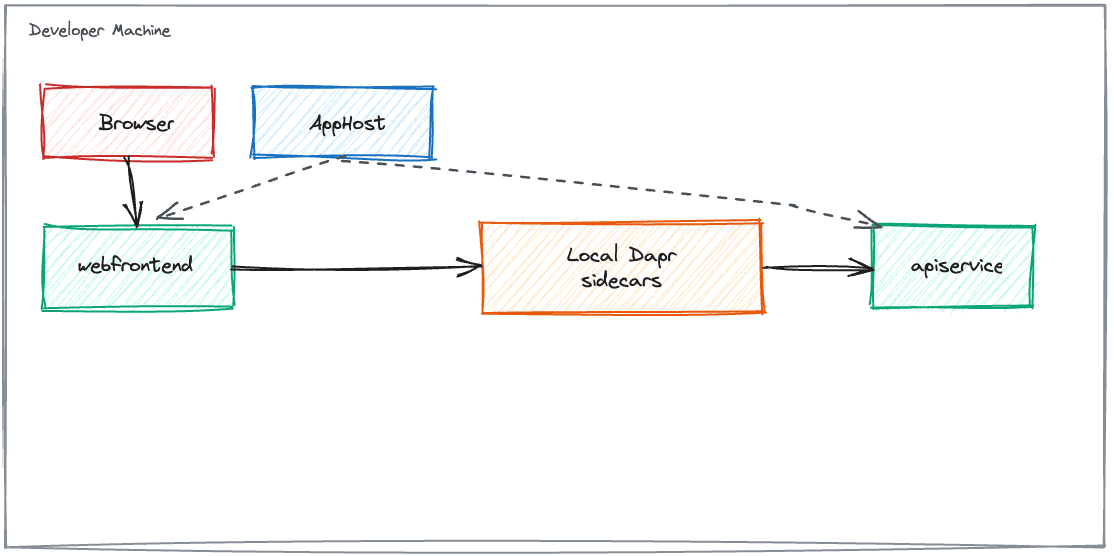

    // Applies to classic Dapr execution in modes 1 and 3, where a sidecar listens on localhost.
    public static ApiServiceRoute ForSidecar(string daprHttpPort, string? daprApiToken) => new(
        new Uri($"http://localhost:{daprHttpPort}/"),
        UseDaprAppIdHeader: true,
        DaprApiToken: daprApiToken);

    // This keeps the web app runnable when no Dapr runtime is attached, which is usually outside the
    // normal four-mode AppHost flow for this repo.
    public static ApiServiceRoute ForServiceDiscovery(string? apiServiceHttp) => new(
        new Uri(apiServiceHttp ?? $"http://{AppResourceNames.ApiService}/"),
        UseDaprAppIdHeader: false,
        DaprApiToken: null);

    private static string AppendTrailingSlash(string endpoint)
    {
        return endpoint.EndsWith("/", StringComparison.Ordinal)
            ? endpoint
            : $"{endpoint}/";
    }
}

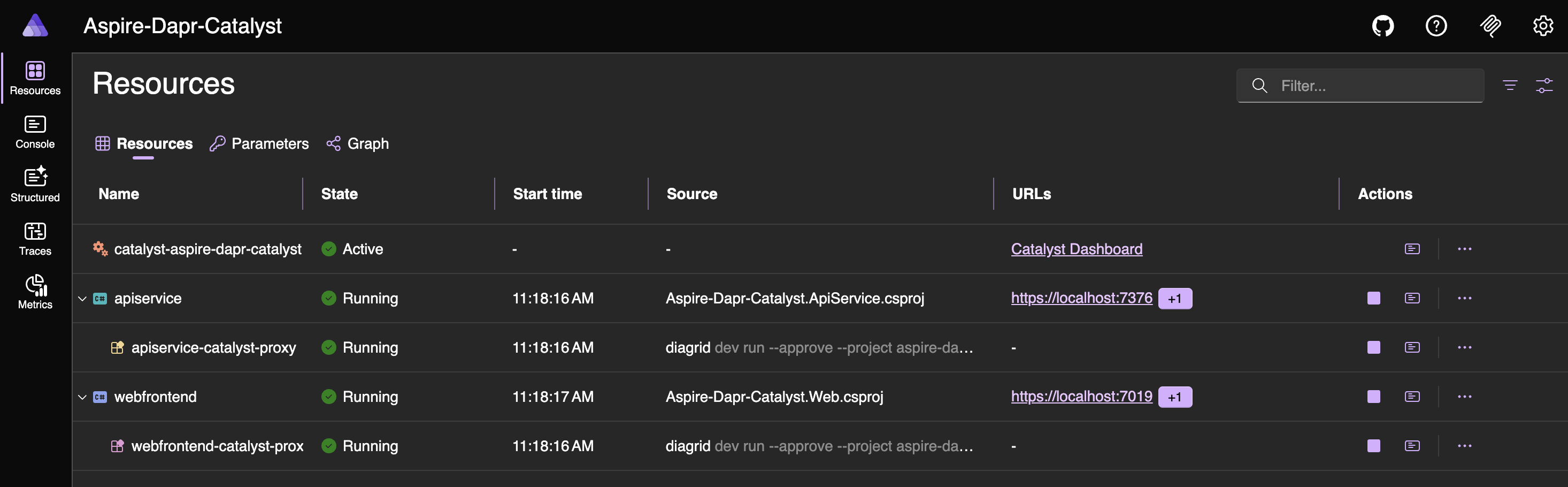

DAPR_EXECUTION_MODE=catalyst aspire run

diagrid project delete aspire-dapr-catalyst

// AppHost.cs

using Aspire_Dapr_Catalyst.ServiceDefaults;

var builder = DistributedApplication.CreateBuilder(args);
var appHostSettings = AppHostSettings.Create(builder);

var apiService = builder.AddProject<Projects.Aspire_Dapr_Catalyst_ApiService>(AppResourceNames.ApiService)
    .WithHttpHealthCheck("/health");

var webFrontend = builder.AddProject<Projects.Aspire_Dapr_Catalyst_Web>(AppResourceNames.WebFrontend)
    .WithExternalHttpEndpoints()
    .WithHttpHealthCheck("/health")
    .WithReference(apiService)
    .WaitFor(apiService);

// AppHost mode map:
// 1. aspire run
// 2. DAPR_EXECUTION_MODE=catalyst aspire run
// 3. aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output
// 4. DAPR_EXECUTION_MODE=catalyst aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output

LocalAppHostConfigurator.ConfigureServiceExecution(builder, appHostSettings, apiService, webFrontend);
LocalAppHostConfigurator.ConfigureLocalOtelServiceNames(appHostSettings, apiService, webFrontend);

KubernetesPublishingConfigurator.Configure(builder, appHostSettings, apiService, webFrontend);

builder.Build().Run();

# KubernetesPublishingConfigurator.cs

using Aspire_Dapr_Catalyst.ServiceDefaults;

internal static class KubernetesPublishingConfigurator
{
    // Applies only to the two publish modes:

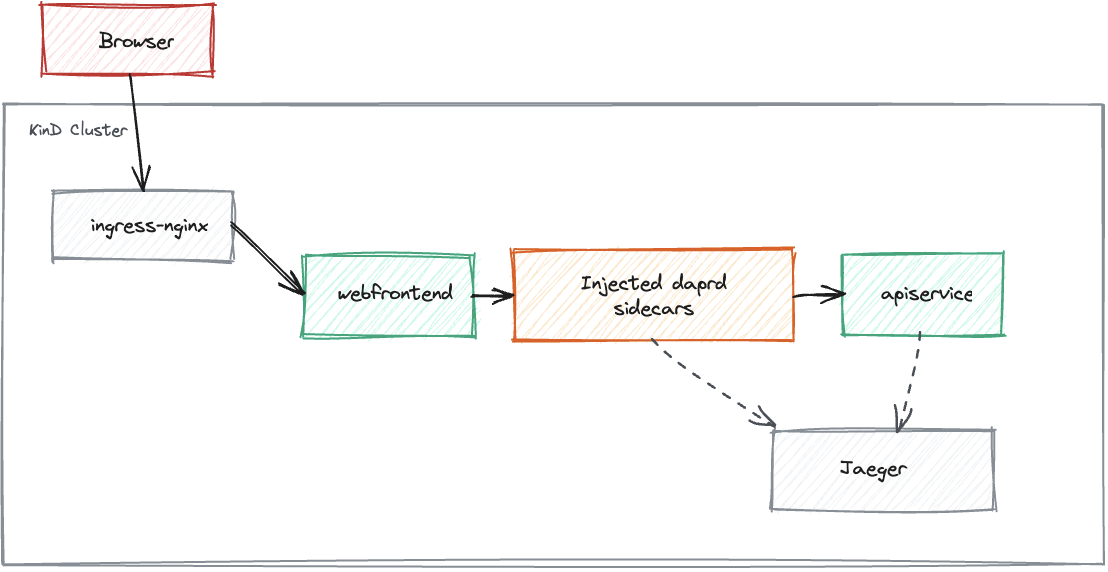

    // 3. Kubernetes output with in-cluster Dapr sidecars

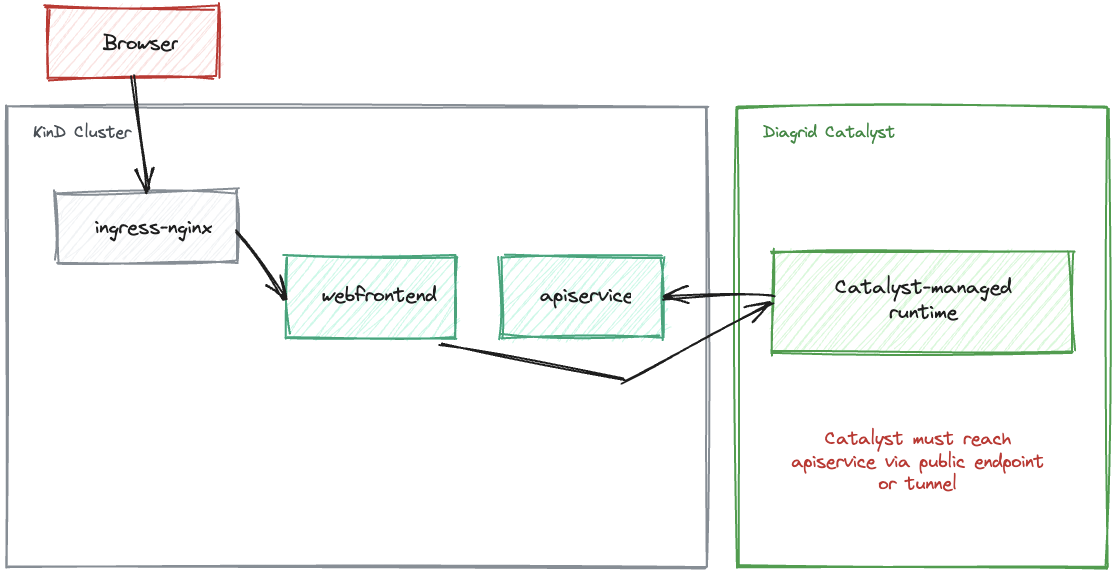

    // 4. Kubernetes output with Catalyst connection settings
    public static void Configure(
        IDistributedApplicationBuilder builder,
        AppHostSettings appHostSettings,
        IResourceBuilder<ProjectResource> apiService,
        IResourceBuilder<ProjectResource> webFrontend)
    {
        if (!appHostSettings.IsPublishMode)
        {
            return;
        }

        var kubernetes = builder.AddKubernetesEnvironment(AppHostComputeEnvironmentNames.Kubernetes);
        var kubernetesExecutionMode = appHostSettings.UseCatalyst
            ? KubernetesExecutionModes.Catalyst
            : KubernetesExecutionModes.DaprSidecars;

        if (kubernetesExecutionMode == KubernetesExecutionModes.Catalyst)
        {
            var catalystPublishParameters = CatalystKubernetesParameters.Create(builder);

            ConfigureCatalystKubernetesEnvironment(webFrontend, catalystPublishParameters);
        }

        apiService
            .WithComputeEnvironment(kubernetes)
            .PublishAsKubernetesService(resource => KubernetesWorkloadConfigurator.Configure(
                resource,
                AppResourceNames.ApiService,
                kubernetesExecutionMode));

        webFrontend
            .WithComputeEnvironment(kubernetes)
            .PublishAsKubernetesService(resource => KubernetesWorkloadConfigurator.Configure(
                resource,
                AppResourceNames.WebFrontend,
                kubernetesExecutionMode));
    }

    // Applies only to mode 4, where the published webfrontend talks to Catalyst instead of a cluster-side daprd.
    private static void ConfigureCatalystKubernetesEnvironment(
        IResourceBuilder<ProjectResource> resource,
        CatalystKubernetesParameters catalystParameters)
    {
        resource
            .WithEnvironment(AppEnvironmentVariables.DaprExecutionMode, ExecutionModes.Catalyst)
            .WithEnvironment(AppEnvironmentVariables.DaprHttpEndpoint, catalystParameters.ProjectHttpEndpoint)
            .WithEnvironment(AppEnvironmentVariables.DaprGrpcEndpoint, catalystParameters.ProjectGrpcEndpoint)
            .WithEnvironment(AppEnvironmentVariables.DaprApiToken, catalystParameters.WebFrontendApiToken);
    }
}

// KubernetesPublishingTypes.cs

// Used only by the two publish modes to select the generated deployment shape:
// 3. cluster-side Dapr sidecars
// 4. Catalyst-backed workloads
internal static class KubernetesExecutionModes
{
    public const string DaprSidecars = "dapr-sidecars";
    public const string Catalyst = "catalyst";
}

// Used only by modes 3 and 4 when generating Kubernetes workload environment variables.
internal static class KubernetesTelemetryDefaults
{
    public const string KubernetesOtlpEndpoint = "http://jaeger.observability.svc.cluster.local:4317";
    public const string OtlpGrpcProtocol = "grpc";
}

// Used only by mode 4 to collect publish-time Catalyst values for the generated chart.
internal sealed class CatalystKubernetesParameters
{
    // Published into the generated chart for webfrontend Catalyst connectivity in mode 4.
    public IResourceBuilder<ParameterResource> ProjectHttpEndpoint { get; private init; } = null!;

    // Published into the generated chart for webfrontend Catalyst connectivity in mode 4.
    public IResourceBuilder<ParameterResource> ProjectGrpcEndpoint { get; private init; } = null!;

    // Secret published only for the mode 4 webfrontend App ID token.
    public IResourceBuilder<ParameterResource> WebFrontendApiToken { get; private init; } = null!;

    public static CatalystKubernetesParameters Create(IDistributedApplicationBuilder builder)
    {
        return new CatalystKubernetesParameters
        {
            ProjectHttpEndpoint = builder.AddParameter(
                "catalyst-k8s-project-http-endpoint",
                () => builder.Configuration[CatalystKubernetesConfigurationKeys.ProjectHttpEndpoint] ?? string.Empty,
                publishValueAsDefault: true,
                secret: false),
            ProjectGrpcEndpoint = builder.AddParameter(
                "catalyst-k8s-project-grpc-endpoint",
                () => builder.Configuration[CatalystKubernetesConfigurationKeys.ProjectGrpcEndpoint] ?? string.Empty,
                publishValueAsDefault: true,
                secret: false),
            WebFrontendApiToken = builder.AddParameter(
                "catalyst-k8s-webfrontend-dapr-api-token",
                () => builder.Configuration[CatalystKubernetesConfigurationKeys.WebFrontendApiToken] ?? string.Empty,
                publishValueAsDefault: false,
                secret: true)
        };
    }
}

// Used only by mode 4 to read publish-time environment variables before generating Kubernetes output.
internal static class CatalystKubernetesConfigurationKeys
{
    public const string ProjectHttpEndpoint = "CATALYST_K8S_PROJECT_HTTP_ENDPOINT";
    public const string ProjectGrpcEndpoint = "CATALYST_K8S_PROJECT_GRPC_ENDPOINT";
    public const string WebFrontendApiToken = "CATALYST_K8S_WEBFRONTEND_DAPR_API_TOKEN";
}

// KubernetesWorkloadConfigurator.cs

using Aspire_Dapr_Catalyst.ServiceDefaults;
using Aspire.Hosting.Kubernetes;
using Aspire.Hosting.Kubernetes.Resources;

internal static class KubernetesWorkloadConfigurator
{
    private const string DaprTracingConfigName = "app-tracing";
    private const string ReadWriteOnceAccessMode = "ReadWriteOnce";
    private const string StorageRequestName = "storage";
    private const string StorageRequestSize = "1Gi";

    public static void Configure(KubernetesResource resource, string appId, string kubernetesExecutionMode)
    {
        var workload = resource.Workload;

        if (workload is null)
        {
            return;
        }

        var isWebFrontend = string.Equals(appId, AppResourceNames.WebFrontend, StringComparison.Ordinal);

        if (string.Equals(kubernetesExecutionMode, KubernetesExecutionModes.DaprSidecars, StringComparison.Ordinal))
        {
            ApplyDaprAnnotations();
        }
        else if (isWebFrontend)
        {
            NormalizeCatalystEnvironmentTemplates();
        }

        foreach (var container in workload.PodTemplate.Spec.Containers)
        {
            if (!string.Equals(container.Name, appId, StringComparison.Ordinal))
            {
                continue;
            }

            AddOpenTelemetryEnvironment(container, appId);

            if (isWebFrontend)
            {
                ConfigureWebFrontendPersistence(container);
            }

            break;
        }

        if (isWebFrontend)
        {
            resource.AdditionalResources.Add(CreateWebFrontendPersistentVolumeClaim());
        }

        void ApplyDaprAnnotations()
        {
            workload.PodTemplate.Metadata ??= new ObjectMetaV1();
            var annotations = workload.PodTemplate.Metadata.Annotations;
            var helmPortExpression = $"{{{{ .Values.parameters.{appId}.port_http }}}}";

            annotations["dapr.io/enabled"] = "true";
            annotations["dapr.io/app-id"] = appId;
            annotations["dapr.io/app-port"] = helmPortExpression;
            annotations["dapr.io/app-protocol"] = "http";
            annotations["dapr.io/log-level"] = "info";
            annotations["dapr.io/config"] = DaprTracingConfigName;
        }

        void ConfigureWebFrontendPersistence(ContainerV1 container)
        {
            workload.PodTemplate.Spec.SecurityContext ??= new PodSecurityContextV1();
            workload.PodTemplate.Spec.SecurityContext.FsGroup = WebFrontendDataProtection.DotNetContainerUserId;

            workload.PodTemplate.Spec.Volumes.Add(new VolumeV1
            {
                Name = WebFrontendDataProtection.VolumeName,
                PersistentVolumeClaim = new PersistentVolumeClaimVolumeSourceV1
                {
                    ClaimName = WebFrontendDataProtection.ClaimName
                }
            });

            container.VolumeMounts.Add(new VolumeMountV1
            {
                Name = WebFrontendDataProtection.VolumeName,
                MountPath = WebFrontendDataProtection.KeysPath
            });

            container.Env.Add(new EnvVarV1
            {
                Name = AppEnvironmentVariables.DataProtectionKeysPath,
                Value = WebFrontendDataProtection.KeysPath
            });
        }

        void NormalizeCatalystEnvironmentTemplates()
        {
            if (resource.ConfigMap is not null)
            {
                resource.ConfigMap.Data[AppEnvironmentVariables.DaprHttpEndpoint] =
                    "{{ .Values.config.webfrontend.DAPR_HTTP_ENDPOINT }}";
                resource.ConfigMap.Data[AppEnvironmentVariables.DaprGrpcEndpoint] =
                    "{{ .Values.config.webfrontend.DAPR_GRPC_ENDPOINT }}";
            }

            if (resource.Secret is not null)
            {
                resource.Secret.StringData[AppEnvironmentVariables.DaprApiToken] =
                    "{{ .Values.secrets.webfrontend.DAPR_API_TOKEN }}";
            }
        }
    }

    private static void AddOpenTelemetryEnvironment(ContainerV1 container, string appId)
    {
        container.Env.Add(new EnvVarV1
        {
            Name = AppEnvironmentVariables.OtelExporterOtlpEndpoint,
            Value = KubernetesTelemetryDefaults.KubernetesOtlpEndpoint
        });
        container.Env.Add(new EnvVarV1
        {
            Name = AppEnvironmentVariables.OtelExporterOtlpProtocol,
            Value = KubernetesTelemetryDefaults.OtlpGrpcProtocol
        });
        container.Env.Add(new EnvVarV1
        {
            Name = AppEnvironmentVariables.OtelServiceName,
            Value = AppTelemetryConventions.GetServiceName(appId)
        });
    }

    private static PersistentVolumeClaim CreateWebFrontendPersistentVolumeClaim()
    {
        var persistentVolumeClaim = new PersistentVolumeClaim
        {
            Metadata = new ObjectMetaV1
            {
                Name = WebFrontendDataProtection.ClaimName
            },
            Spec = new PersistentVolumeClaimSpecV1
            {
                Resources = new VolumeResourceRequirementsV1()
            }
        };

        persistentVolumeClaim.Spec.AccessModes.Add(ReadWriteOnceAccessMode);
        persistentVolumeClaim.Spec.Resources.Requests[StorageRequestName] = StorageRequestSize;

        return persistentVolumeClaim;
    }
}

internal static class WebFrontendDataProtection
{
    public const string KeysPath = "/home/app/.aspnet/DataProtection-Keys";
    public const string VolumeName = "data-protection-keys";
    public const string ClaimName = "webfrontend-data-protection-keys";
    public const long DotNetContainerUserId = 1654;
}

# kind-cluster-config.yaml
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  kubeadmConfigPatches:
  - |
    kind: InitConfiguration
    nodeRegistration:
      kubeletExtraArgs:
        node-labels: "ingress-ready=true"
  extraPortMappings:
  - containerPort: 80
    hostPort: 8081
    protocol: TCP
  - containerPort: 443
    hostPort: 8443
    protocol: TCP
- role: worker
- role: worker

kind create cluster --config kind-cluster-config.yaml

dapr init --kubernetes

dapr status -k

dapr dashboard -k -p 9999

# components.yaml
metadata:
   labels:
     k8s-app: metrics-server
 spec:
   containers:
   - args:
     - --cert-dir=/tmp
     - --secure-port=4443
     - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
     - --kubelet-use-node-status-port
     - --kubelet-insecure-tls   <==== Add this
     - --metric-resolution=15s
     image: k8s.gcr.io/metrics-server/metrics-server:v0.6.2
     imagePullPolicy: IfNotPresent
     livenessProbe:
       failureThreshold: 3
       httpGet:
         path: /livez

kubectl apply -f components.yaml

aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output

dotnet publish Aspire-Dapr-Catalyst.ApiService/Aspire-Dapr-Catalyst.ApiService.csproj \
  -c Release /t:PublishContainer \
  -p:ContainerRepository=apiservice \
  -p:ContainerImageTag=latest

dotnet publish Aspire-Dapr-Catalyst.Web/Aspire-Dapr-Catalyst.Web.csproj \
  -c Release /t:PublishContainer \
  -p:ContainerRepository=webfrontend \
  -p:ContainerImageTag=latest

kind load docker-image apiservice:latest --name kind
kind load docker-image webfrontend:latest --name kind

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.15.1/deploy/static/provider/kind/deploy.yaml
kubectl -n ingress-nginx patch deployment ingress-nginx-controller --type merge -p '{"spec":{"template":{"spec":{"nodeSelector":{"kubernetes.io/os":"linux","ingress-ready":"true"}}}}}'
kubectl -n ingress-nginx rollout status deployment/ingress-nginx-controller --timeout=180s
kubectl -n ingress-nginx wait --for=condition=complete job/ingress-nginx-admission-patch --timeout=180s

helm upgrade --install aspire-dapr \
  Aspire-Dapr-Catalyst.AppHost/aspire-output \
  --namespace aspire-dapr \
  --create-namespace

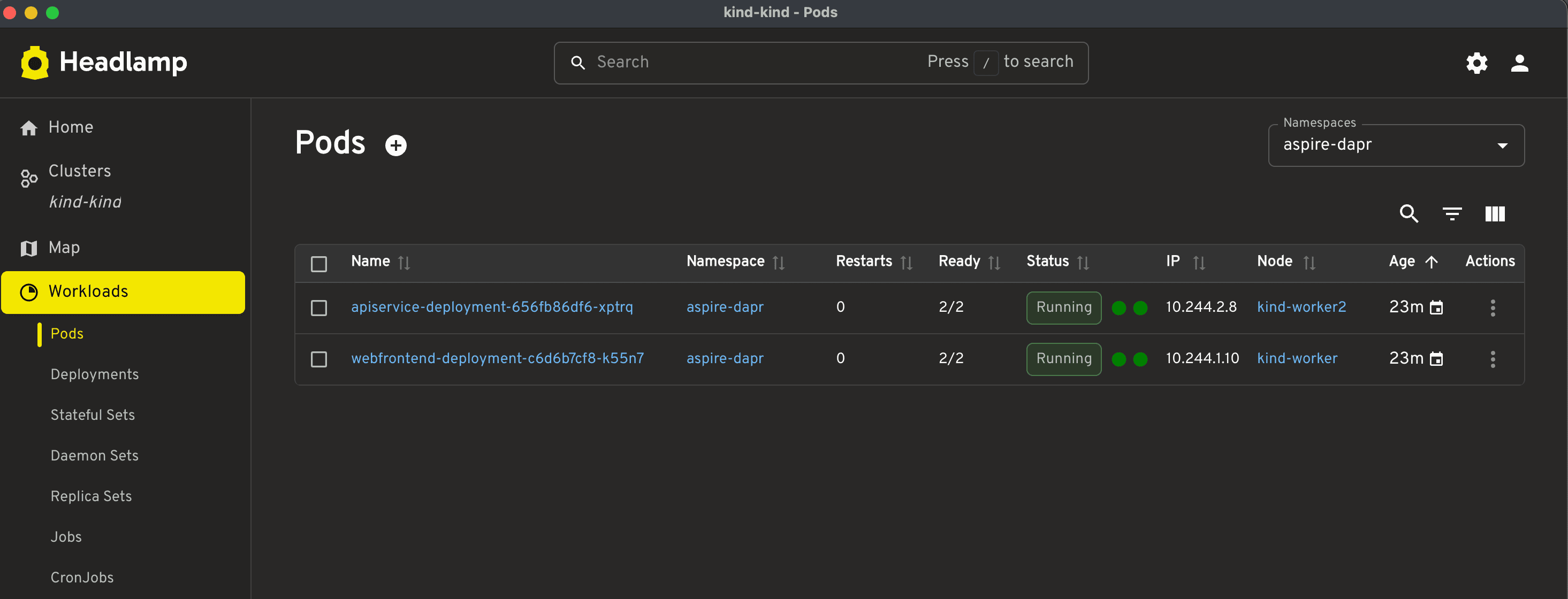

kubectl -n aspire-dapr rollout status deploy/apiservice-deployment
kubectl -n aspire-dapr rollout status deploy/webfrontend-deployment

# webfrontend-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: webfrontend-ingress
  namespace: aspire-dapr
  annotations:
    nginx.ingress.kubernetes.io/enable-opentelemetry: "true"
    nginx.ingress.kubernetes.io/opentelemetry-trust-incoming-span: "true"
spec:
  ingressClassName: nginx
  rules:
  - http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: webfrontend-service
            port:
              name: http

kubectl apply -f webfrontend-ingress.yaml

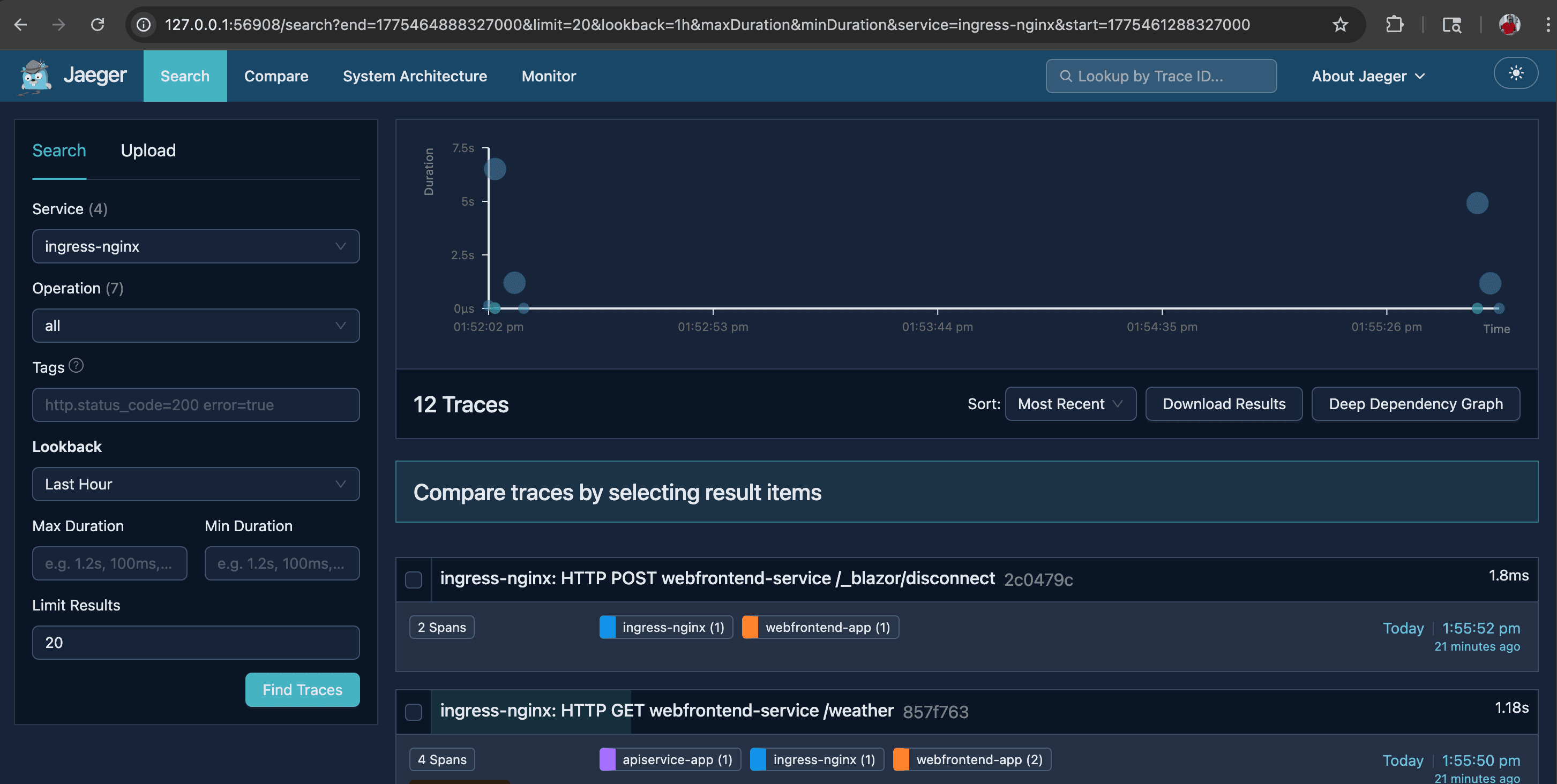

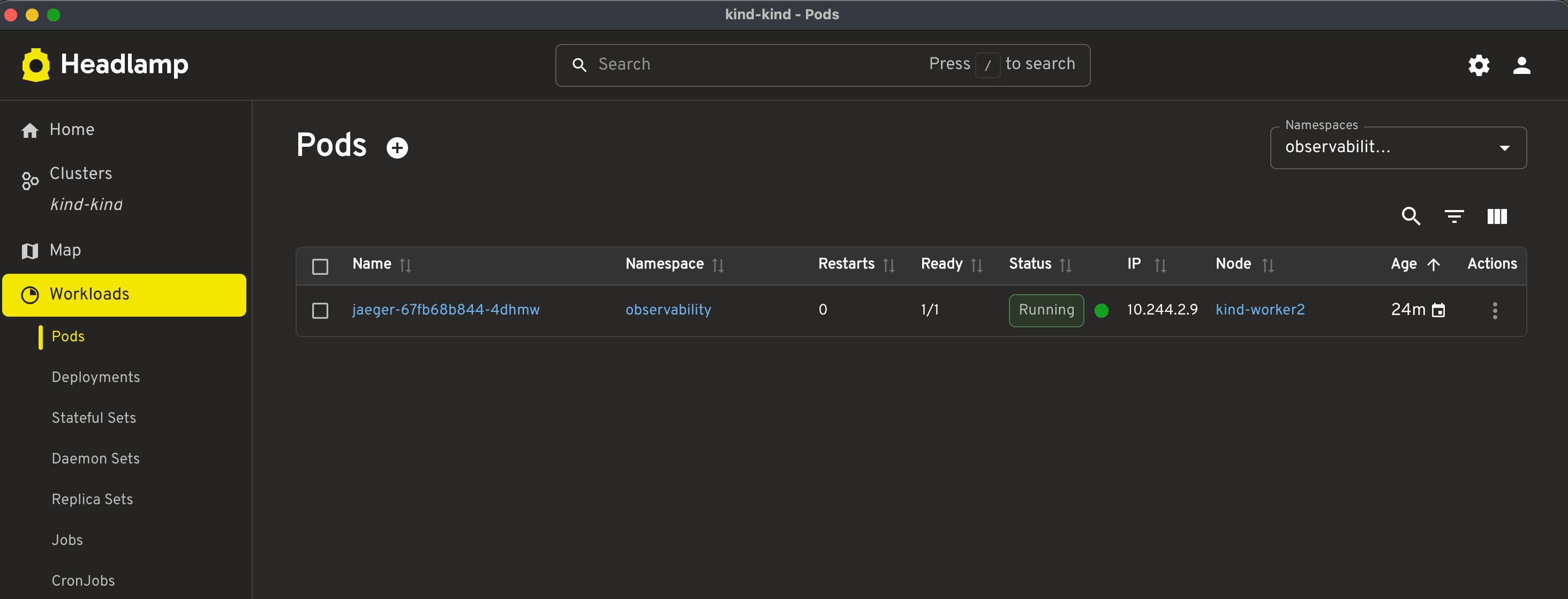

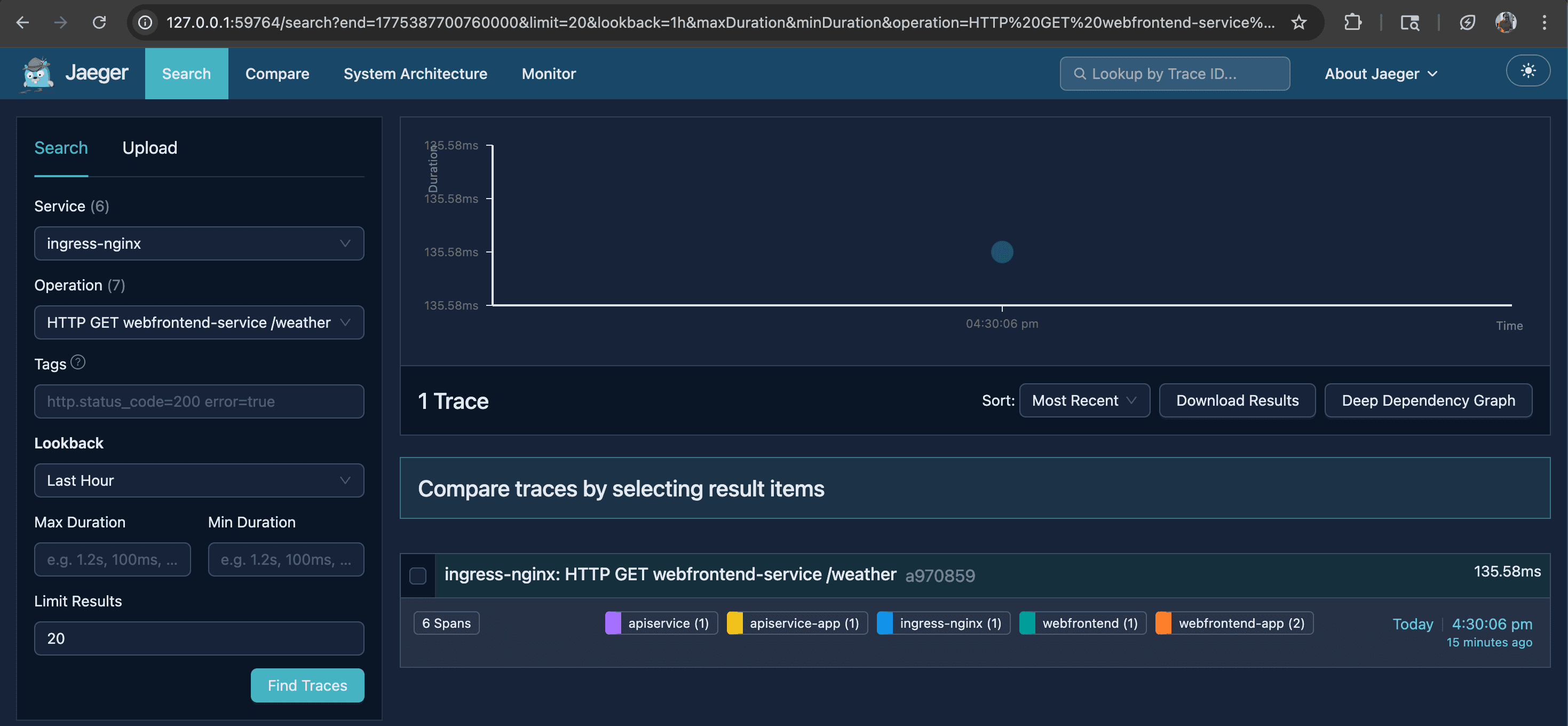

# jaeger.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: observability
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jaeger
  namespace: observability
spec:
  replicas: 1
  selector:
    matchLabels:
      app: jaeger
  template:
    metadata:
      labels:
        app: jaeger
    spec:
      containers:
      - name: jaeger
        image: cr.jaegertracing.io/jaegertracing/jaeger:2.16.0
        ports:
        - containerPort: 16686
          name: query
        - containerPort: 4317
          name: otlp-grpc
        - containerPort: 4318
          name: otlp-http
        - containerPort: 9411
          name: zipkin
        resources:
          requests:
            cpu: 100m
            memory: 256Mi
          limits:
            cpu: 500m
            memory: 512Mi
---
apiVersion: v1
kind: Service
metadata:
  name: jaeger
  namespace: observability
spec:
  selector:
    app: jaeger
  ports:
  - name: query
    port: 16686
    targetPort: query
  - name: otlp-grpc
    port: 4317
    targetPort: otlp-grpc
  - name: otlp-http
    port: 4318
    targetPort: otlp-http
  - name: zipkin
    port: 9411
    targetPort: zipkin

# dapr-tracing-config.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: observability
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: jaeger
  namespace: observability
spec:
  replicas: 1
  selector:
    matchLabels:
      app: jaeger
  template:
    metadata:
      labels:
        app: jaeger
    spec:
      containers:
      - name: jaeger
        image: cr.jaegertracing.io/jaegertracing/jaeger:2.16.0
        ports:
        - containerPort: 16686
          name: query
        - containerPort: 4317
          name: otlp-grpc
        - containerPort: 4318
          name: otlp-http
        - containerPort: 9411
          name: zipkin
        resources:
          requests:
            cpu: 100m
            memory: 256Mi
          limits:
            cpu: 500m
            memory: 512Mi
---
apiVersion: v1
kind: Service
metadata:
  name: jaeger
  namespace: observability
spec:
  selector:
    app: jaeger
  ports:
  - name: query
    port: 16686
    targetPort: query
  - name: otlp-grpc
    port: 4317
    targetPort: otlp-grpc
  - name: otlp-http
    port: 4318
    targetPort: otlp-http
  - name: zipkin
    port: 9411
    targetPort: zipkin

# ingress-nginx-opentelemetry-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  enable-opentelemetry: "true"
  opentelemetry-config: "/etc/ingress-controller/telemetry/opentelemetry.toml"
  opentelemetry-operation-name: "HTTP $request_method $service_name $uri"
  opentelemetry-trust-incoming-span: "true"
  otlp-collector-host: "jaeger.observability.svc.cluster.local"
  otlp-collector-port: "4317"
  otel-service-name: "ingress-nginx"
  otel-sampler: "AlwaysOn"
  otel-sampler-ratio: "1.0"
  otel-sampler-parent-based: "true"

kubectl apply -f jaeger.yaml
kubectl apply -f dapr-sidecar-tracing-config.yaml
kubectl apply -f ingress-nginx-opentelemetry-config.yaml
kubectl -n ingress-nginx rollout restart deployment/ingress-nginx-controller
kubectl -n ingress-nginx rollout status deployment/ingress-nginx-controller --timeout=180s

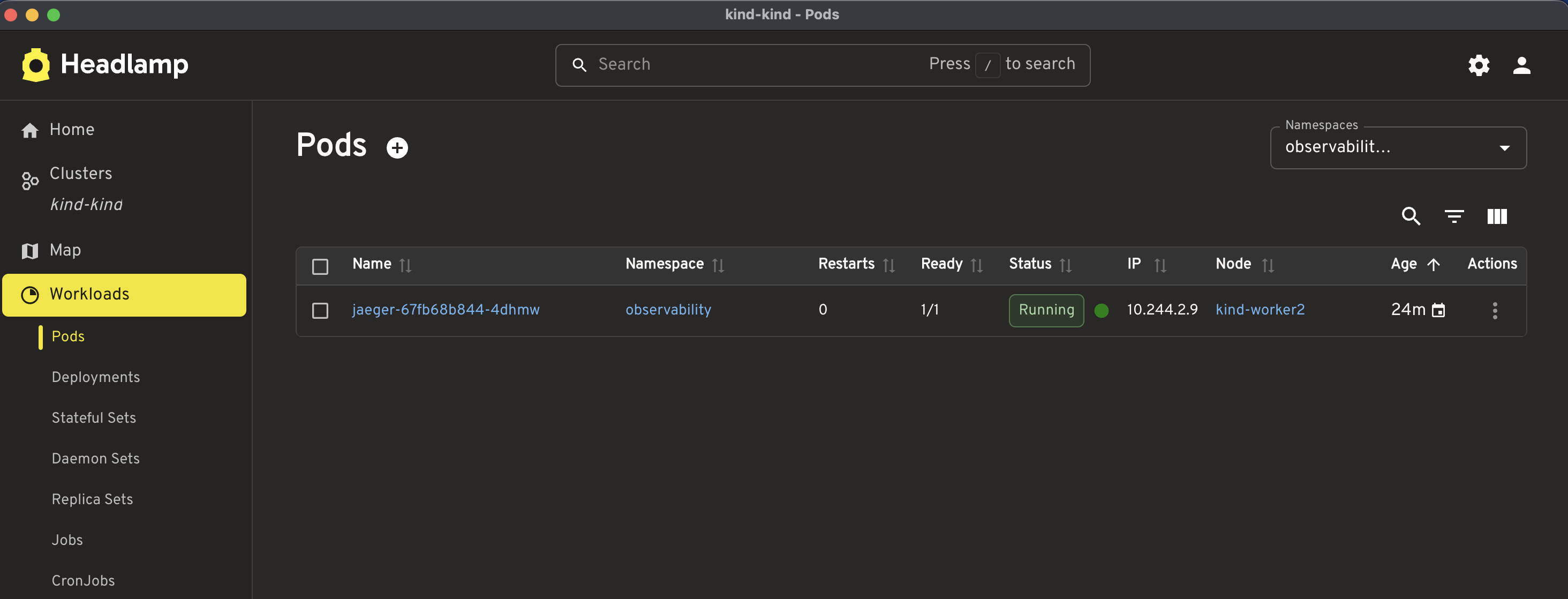

kubectl -n observability rollout status deployment/jaeger --timeout=180s

kubectl -n aspire-dapr port-forward svc/apiservice-service 8082:8080
diagrid dev run --app-id apiservice --app-port 8082 --project aspire-dapr-catalyst --approve

DAPR_EXECUTION_MODE=catalyst aspire publish --non-interactive -o Aspire-Dapr-Catalyst.AppHost/aspire-output
